| TYPE | DESCRIPTION |
| Mfr | IR (Infineon Technologies) |
| Series | - |
| Package | Tube |
| Product Status | OBSOLETE |

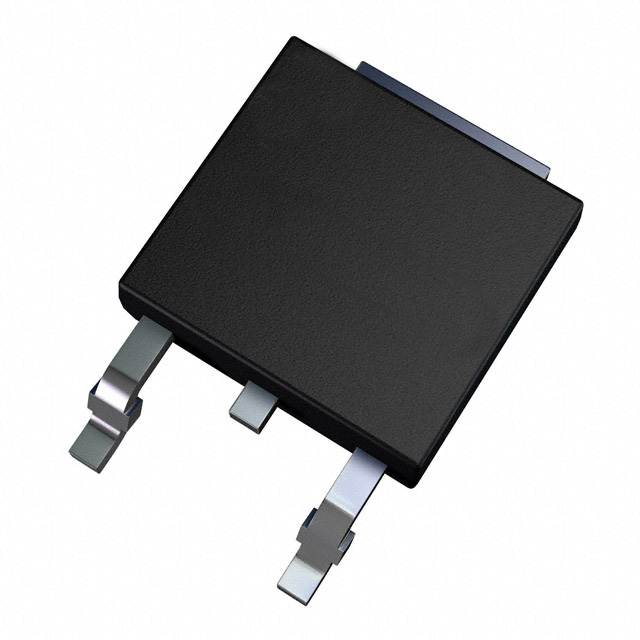

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 12A |
| Supplier Device Package | TO-252AA (DPAK) |
| Td (on/off) @ 25°C | 26ns/194ns |
| Switching Energy | 190µJ (on), 920µJ (off) |
| Test Condition | 480V, 12A, 50Ohm, 15V |
| Gate Charge | 27 nC |
| Current - Collector (Ic) (Max) | 22 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 44 A |
| Power - Max | 66 W |
